dubbo服务启动暴露过程

发表于 更新于 分类于 ，
本文字数： 24k 阅读时长 ≈ 22 分钟

服务启动暴露过程

服务提供者暴露一个服务的详细过程

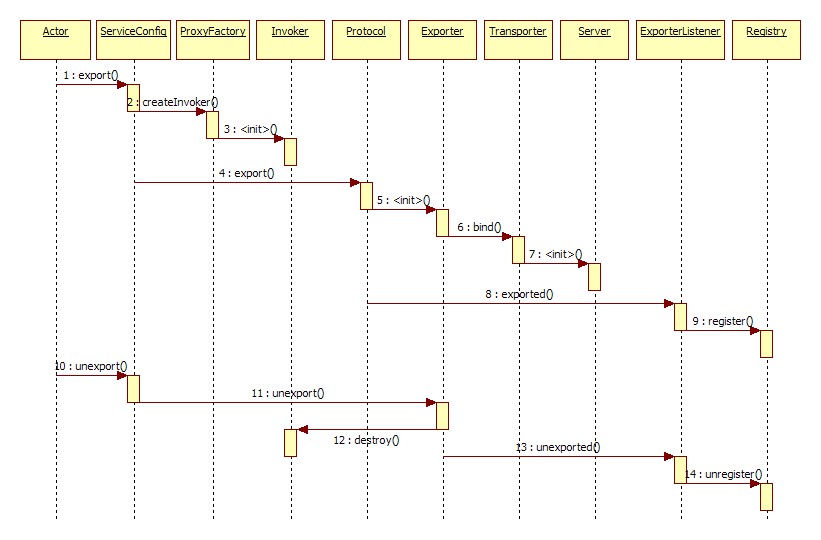

服务暴露时序图

暴露时序图

自定义标签的解析

  通常在项目启动的过程中，我们会将dubbo的配置文件写入spring的配置文件中。

解析服务

  基于 dubbo.jar 内的 META-INF/spring.handlers 配置，Spring 在遇到 dubbo 名称空间时，会回调 DubboNamespaceHandler。
  所有 dubbo 的标签，都统一用 DubboBeanDefinitionParser 进行解析，基于一对一属性映射，将 XML 标签解析为 Bean 对象。

  根据官方文档，在spring启动过程中，碰到dubbo开头的标签，会由DubboNamespaceHandler处理。这里也是基于spring自定义标签，的扩展机制。

  META-INF/spring.schemas文件。定义dubbo.xml文件格式，约束。

1
2
http\://dubbo.apache.org/schema/dubbo/dubbo.xsd=META-INF/dubbo.xsd
http\://code.alibabatech.com/schema/dubbo/dubbo.xsd=META-INF/compat/dubbo.xsd

  META-INF/spring.handlers文件，定义了xml文件的命名空间处理器，负责解析dubbo.xml。

1
2
http\://dubbo.apache.org/schema/dubbo=org.apache.dubbo.config.spring.schema.DubboNamespaceHandler
http\://code.alibabatech.com/schema/dubbo=org.apache.dubbo.config.spring.schema.DubboNamespaceHandler

  命名空间处理器。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public class DubboNamespaceHandler extends NamespaceHandlerSupport {

    static {
        Version.checkDuplicate(DubboNamespaceHandler.class);
    }

    @Override
    public void init() {
        registerBeanDefinitionParser("application", new DubboBeanDefinitionParser(ApplicationConfig.class, true));
        registerBeanDefinitionParser("module", new DubboBeanDefinitionParser(ModuleConfig.class, true));
        registerBeanDefinitionParser("registry", new DubboBeanDefinitionParser(RegistryConfig.class, true));
        registerBeanDefinitionParser("config-center", new DubboBeanDefinitionParser(ConfigCenterBean.class, true));
        registerBeanDefinitionParser("metadata-report", new DubboBeanDefinitionParser(MetadataReportConfig.class, true));
        registerBeanDefinitionParser("monitor", new DubboBeanDefinitionParser(MonitorConfig.class, true));
        registerBeanDefinitionParser("provider", new DubboBeanDefinitionParser(ProviderConfig.class, true));
        registerBeanDefinitionParser("consumer", new DubboBeanDefinitionParser(ConsumerConfig.class, true));
        registerBeanDefinitionParser("protocol", new DubboBeanDefinitionParser(ProtocolConfig.class, true));
        registerBeanDefinitionParser("service", new DubboBeanDefinitionParser(ServiceBean.class, true));
        registerBeanDefinitionParser("reference", new DubboBeanDefinitionParser(ReferenceBean.class, false));
        registerBeanDefinitionParser("annotation", new AnnotationBeanDefinitionParser());
    }

}

  遇到不同的标签会交由不同的处理器（Parser）进行处理。

服务注册与暴露

暴露服务

  在 ServiceConfig.export() 或 ReferenceConfig.get() 初始化时，将 Bean 对象转换 URL 格式，所有 Bean 属性转成 URL 的参数。
  然后将 URL 传给 协议扩展点，基于扩展点的 扩展点自适应机制，根据 URL 的协议头，进行不同协议的服务暴露或引用。

  基于上面解析的结果，会在spring容器中生成对应的ServiceBean实例，这个bean实现了很多方法，初始化，销毁等。

1
2
3
4
5
public class ServiceBean<T> extends ServiceConfig<T> implements InitializingBean, DisposableBean,
        ApplicationContextAware, ApplicationListener<ContextRefreshedEvent>, BeanNameAware,
        ApplicationEventPublisherAware {

}

  而在spring初始化完成bean的组装后会调用InitializingBean的afterPropertiesSet方法。
  在spring容器完成加载，会接收到ContextRefreshedEvent事件，调用ApplicationListener的onApplicationEvent方法。
  这两个方法中会调用export方法，间接调用ServiceConfig中的export方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@Override
@SuppressWarnings({"unchecked", "deprecation"})
public void afterPropertiesSet() throws Exception {
    ···
    // 省略一堆流程
    if (!supportedApplicationListener) {
        export();
    }
}

@Override
public void onApplicationEvent(ContextRefreshedEvent event) {
    if (!isExported() && !isUnexported()) {
        if (logger.isInfoEnabled()) {
            logger.info("The service ready on spring started. service: " + getInterface());
        }
        export();
    }
}

  ServiceConfig的export方法中。调用了本地的doExport方法。在这里如果发现有延迟属性（delay），则延迟时间暴露服务，如果没有就直接暴露服务。

1
2
3
4
5
6
7
8
9
10
11
12
13
public synchronized void export() {
    checkAndUpdateSubConfigs();

    if (!shouldExport()) {
        return;
    }

    if (shouldDelay()) {
        delayExportExecutor.schedule(this::doExport, delay, TimeUnit.MILLISECONDS);
    } else {
        doExport();
    }
}

  ServiceConfig的doExport方法中。调用了本地的doExportUrls方法，紧接着就调用了doExportUrlsFor1Protocol方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
protected synchronized void doExport() {
    if (unexported) {
        throw new IllegalStateException("The service " + interfaceClass.getName() + " has already unexported!");
    }
    if (exported) {
        return;
    }
    exported = true;

    if (StringUtils.isEmpty(path)) {
        path = interfaceName;
    }
    doExportUrls();
}

private void doExportUrls() {
    List<URL> registryURLs = loadRegistries(true);
    for (ProtocolConfig protocolConfig : protocols) {
        String pathKey = URL.buildKey(getContextPath(protocolConfig).map(p -> p + "/" + path).orElse(path), group, version);
        ProviderModel providerModel = new ProviderModel(pathKey, ref, interfaceClass);
        ApplicationModel.initProviderModel(pathKey, providerModel);
        doExportUrlsFor1Protocol(protocolConfig, registryURLs);
    }
}

  在doExportUrls中，按照不同的Protocol暴露服务，在不同的zookeeper上集群上注册自己的服务。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
private void doExportUrlsFor1Protocol(ProtocolConfig protocolConfig, List<URL> registryURLs) {
    String name = protocolConfig.getName();
    if (StringUtils.isEmpty(name)) {
        name = Constants.DUBBO;
    }

    Map<String, String> map = new HashMap<String, String>();
    map.put(Constants.SIDE_KEY, Constants.PROVIDER_SIDE);
    appendRuntimeParameters(map);
    appendParameters(map, application);
    appendParameters(map, module);
    appendParameters(map, provider, Constants.DEFAULT_KEY);
    appendParameters(map, protocolConfig);
    appendParameters(map, this);
    if (CollectionUtils.isNotEmpty(methods)) {
        for (MethodConfig method : methods) {
            appendParameters(map, method, method.getName());
            String retryKey = method.getName() + ".retry";
            if (map.containsKey(retryKey)) {
                String retryValue = map.remove(retryKey);
                if ("false".equals(retryValue)) {
                    map.put(method.getName() + ".retries", "0");
                }
            }
            List<ArgumentConfig> arguments = method.getArguments();
            if (CollectionUtils.isNotEmpty(arguments)) {
                for (ArgumentConfig argument : arguments) {
                    // convert argument type
                    if (argument.getType() != null && argument.getType().length() > 0) {
                        Method[] methods = interfaceClass.getMethods();
                        // visit all methods
                        if (methods != null && methods.length > 0) {
                            for (int i = 0; i < methods.length; i++) {
                                String methodName = methods[i].getName();
                                // target the method, and get its signature
                                if (methodName.equals(method.getName())) {
                                    Class<?>[] argtypes = methods[i].getParameterTypes();
                                    // one callback in the method
                                    if (argument.getIndex() != -1) {
                                        if (argtypes[argument.getIndex()].getName().equals(argument.getType())) {
                                            appendParameters(map, argument, method.getName() + "." + argument.getIndex());
                                        } else {
                                            throw new IllegalArgumentException("Argument config error : the index attribute and type attribute not match :index :" + argument.getIndex() + ", type:" + argument.getType());
                                        }
                                    } else {
                                        // multiple callbacks in the method
                                        for (int j = 0; j < argtypes.length; j++) {
                                            Class<?> argclazz = argtypes[j];
                                            if (argclazz.getName().equals(argument.getType())) {
                                                appendParameters(map, argument, method.getName() + "." + j);
                                                if (argument.getIndex() != -1 && argument.getIndex() != j) {
                                                    throw new IllegalArgumentException("Argument config error : the index attribute and type attribute not match :index :" + argument.getIndex() + ", type:" + argument.getType());
                                                }
                                            }
                                        }
                                    }
                                }
                            }
                        }
                    } else if (argument.getIndex() != -1) {
                        appendParameters(map, argument, method.getName() + "." + argument.getIndex());
                    } else {
                        throw new IllegalArgumentException("Argument config must set index or type attribute.eg: <dubbo:argument index='0' .../> or <dubbo:argument type=xxx .../>");
                    }

                }
            }
        } // end of methods for
    }

    if (ProtocolUtils.isGeneric(generic)) {
        map.put(Constants.GENERIC_KEY, generic);
        map.put(Constants.METHODS_KEY, Constants.ANY_VALUE);
    } else {
        String revision = Version.getVersion(interfaceClass, version);
        if (revision != null && revision.length() > 0) {
            map.put("revision", revision);
        }

        String[] methods = Wrapper.getWrapper(interfaceClass).getMethodNames();
        if (methods.length == 0) {
            logger.warn("No method found in service interface " + interfaceClass.getName());
            map.put(Constants.METHODS_KEY, Constants.ANY_VALUE);
        } else {
            map.put(Constants.METHODS_KEY, StringUtils.join(new HashSet<String>(Arrays.asList(methods)), ","));
        }
    }
    if (!ConfigUtils.isEmpty(token)) {
        if (ConfigUtils.isDefault(token)) {
            map.put(Constants.TOKEN_KEY, UUID.randomUUID().toString());
        } else {
            map.put(Constants.TOKEN_KEY, token);
        }
    }
    // export service
    String host = this.findConfigedHosts(protocolConfig, registryURLs, map);
    Integer port = this.findConfigedPorts(protocolConfig, name, map);
    URL url = new URL(name, host, port, getContextPath(protocolConfig).map(p -> p + "/" + path).orElse(path), map);

    if (ExtensionLoader.getExtensionLoader(ConfiguratorFactory.class)
            .hasExtension(url.getProtocol())) {
        url = ExtensionLoader.getExtensionLoader(ConfiguratorFactory.class)
                .getExtension(url.getProtocol()).getConfigurator(url).configure(url);
    }

    String scope = url.getParameter(Constants.SCOPE_KEY);
    // don't export when none is configured
    if (!Constants.SCOPE_NONE.equalsIgnoreCase(scope)) {

        // export to local if the config is not remote (export to remote only when config is remote)
        if (!Constants.SCOPE_REMOTE.equalsIgnoreCase(scope)) {
            exportLocal(url);
        }
        // export to remote if the config is not local (export to local only when config is local)
        if (!Constants.SCOPE_LOCAL.equalsIgnoreCase(scope)) {
            if (logger.isInfoEnabled()) {
                logger.info("Export dubbo service " + interfaceClass.getName() + " to url " + url);
            }
            if (CollectionUtils.isNotEmpty(registryURLs)) {
                for (URL registryURL : registryURLs) {
                    url = url.addParameterIfAbsent(Constants.DYNAMIC_KEY, registryURL.getParameter(Constants.DYNAMIC_KEY));
                    URL monitorUrl = loadMonitor(registryURL);
                    if (monitorUrl != null) {
                        url = url.addParameterAndEncoded(Constants.MONITOR_KEY, monitorUrl.toFullString());
                    }
                    if (logger.isInfoEnabled()) {
                        logger.info("Register dubbo service " + interfaceClass.getName() + " url " + url + " to registry " + registryURL);
                    }

                    // For providers, this is used to enable custom proxy to generate invoker
                    String proxy = url.getParameter(Constants.PROXY_KEY);
                    if (StringUtils.isNotEmpty(proxy)) {
                        registryURL = registryURL.addParameter(Constants.PROXY_KEY, proxy);
                    }

                    Invoker<?> invoker = proxyFactory.getInvoker(ref, (Class) interfaceClass, registryURL.addParameterAndEncoded(Constants.EXPORT_KEY, url.toFullString()));
                    DelegateProviderMetaDataInvoker wrapperInvoker = new DelegateProviderMetaDataInvoker(invoker, this);

                    Exporter<?> exporter = protocol.export(wrapperInvoker);
                    exporters.add(exporter);
                }
            } else {
                Invoker<?> invoker = proxyFactory.getInvoker(ref, (Class) interfaceClass, url);
                DelegateProviderMetaDataInvoker wrapperInvoker = new DelegateProviderMetaDataInvoker(invoker, this);

                Exporter<?> exporter = protocol.export(wrapperInvoker);
                exporters.add(exporter);
            }
            /**
                * @since 2.7.0
                * ServiceData Store
                */
            MetadataReportService metadataReportService = null;
            if ((metadataReportService = getMetadataReportService()) != null) {
                metadataReportService.publishProvider(url);
            }
        }
    }
    this.urls.add(url);
}

  这里采用一个map保存下来所有的url参数和value值，然后调用代理工厂根据ref（实际服务提供对象）获取invoker对象（接口的代理对象），在使用protocol转为exporter，将服务暴露出去。
  代理工厂采用SPI机制来搞，可以选择代理方式。

1
private static final ProxyFactory proxyFactory = ExtensionLoader.getExtensionLoader(ProxyFactory.class).getAdaptiveExtension();
1
2
3
stub=org.apache.dubbo.rpc.proxy.wrapper.StubProxyFactoryWrapper
jdk=org.apache.dubbo.rpc.proxy.jdk.JdkProxyFactory
javassist=org.apache.dubbo.rpc.proxy.javassist.JavassistProxyFactory

  这里使用了SPI机制去确定使用那个协议对应的protocol。这里采用了很多的SPI机制，自适应，自动包装。

1
private static final Protocol protocol = ExtensionLoader.getExtensionLoader(Protocol.class).getAdaptiveExtension();
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
filter=org.apache.dubbo.rpc.protocol.ProtocolFilterWrapper
listener=org.apache.dubbo.rpc.protocol.ProtocolListenerWrapper

mock=org.apache.dubbo.rpc.support.MockProtocol
dubbo=org.apache.dubbo.rpc.protocol.dubbo.DubboProtocol
injvm=org.apache.dubbo.rpc.protocol.injvm.InjvmProtocol
rmi=org.apache.dubbo.rpc.protocol.rmi.RmiProtocol
hessian=org.apache.dubbo.rpc.protocol.hessian.HessianProtocol
http=org.apache.dubbo.rpc.protocol.http.HttpProtocol

org.apache.dubbo.rpc.protocol.webservice.WebServiceProtocol
thrift=org.apache.dubbo.rpc.protocol.thrift.ThriftProtocol
memcached=org.apache.dubbo.rpc.protocol.memcached.MemcachedProtocol
redis=org.apache.dubbo.rpc.protocol.redis.RedisProtocol
rest=org.apache.dubbo.rpc.protocol.rest.RestProtocol
registry=org.apache.dubbo.registry.integration.RegistryProtocol

qos=org.apache.dubbo.qos.protocol.QosProtocolWrapper

本地暴露

只暴露服务端口

  当在本地暴露服务时，默认会进入DubboProtocol，也可以配置其他协议。在DubboProtocol中：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
@Override
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
    URL url = invoker.getUrl();

    // export service.
    String key = serviceKey(url);
    DubboExporter<T> exporter = new DubboExporter<T>(invoker, key, exporterMap);
    exporterMap.put(key, exporter);

    //export an stub service for dispatching event
    Boolean isStubSupportEvent = url.getParameter(Constants.STUB_EVENT_KEY, Constants.DEFAULT_STUB_EVENT);
    Boolean isCallbackservice = url.getParameter(Constants.IS_CALLBACK_SERVICE, false);
    if (isStubSupportEvent && !isCallbackservice) {
        String stubServiceMethods = url.getParameter(Constants.STUB_EVENT_METHODS_KEY);
        if (stubServiceMethods == null || stubServiceMethods.length() == 0) {
            if (logger.isWarnEnabled()) {
                logger.warn(new IllegalStateException("consumer [" + url.getParameter(Constants.INTERFACE_KEY) +
                        "], has set stubproxy support event ,but no stub methods founded."));
            }

        } else {
            stubServiceMethodsMap.put(url.getServiceKey(), stubServiceMethods);
        }
    }

    openServer(url);
    optimizeSerialization(url);

    return exporter;
}

  export方法调用openServer方法开启服务，如果服务不存在就创建一个服务。这里默认是netty服务，也可以通过SPI使用其他的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
private void openServer(URL url) {
    // find server.
    String key = url.getAddress();
    //client can export a service which's only for server to invoke
    boolean isServer = url.getParameter(Constants.IS_SERVER_KEY, true);
    if (isServer) {
        ExchangeServer server = serverMap.get(key);
        if (server == null) {
            synchronized (this) {
                server = serverMap.get(key);
                if (server == null) {
                    serverMap.put(key, createServer(url));
                }
            }
        } else {
            // server supports reset, use together with override
            server.reset(url);
        }
    }
}

private ExchangeServer createServer(URL url) {
    url = URLBuilder.from(url)
            // send readonly event when server closes, it's enabled by default
            .addParameterIfAbsent(Constants.CHANNEL_READONLYEVENT_SENT_KEY, Boolean.TRUE.toString())
            // enable heartbeat by default
            .addParameterIfAbsent(Constants.HEARTBEAT_KEY, String.valueOf(Constants.DEFAULT_HEARTBEAT))
            .addParameter(Constants.CODEC_KEY, DubboCodec.NAME)
            .build();
    String str = url.getParameter(Constants.SERVER_KEY, Constants.DEFAULT_REMOTING_SERVER);

    if (str != null && str.length() > 0 && !ExtensionLoader.getExtensionLoader(Transporter.class).hasExtension(str)) {
        throw new RpcException("Unsupported server type: " + str + ", url: " + url);
    }

    ExchangeServer server;
    try {
        server = Exchangers.bind(url, requestHandler);
    } catch (RemotingException e) {
        throw new RpcException("Fail to start server(url: " + url + ") " + e.getMessage(), e);
    }

    str = url.getParameter(Constants.CLIENT_KEY);
    if (str != null && str.length() > 0) {
        Set<String> supportedTypes = ExtensionLoader.getExtensionLoader(Transporter.class).getSupportedExtensions();
        if (!supportedTypes.contains(str)) {
            throw new RpcException("Unsupported client type: " + str);
        }
    }

    return server;
}

  而在headerExchanger的bind中，调用了Transporters.bind()，一直调用到NettyServer,绑定了端口和链接。而消费的时候则是一直调用connect方法建立连接。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public static ExchangeServer bind(URL url, ExchangeHandler handler) throws RemotingException {
    if (url == null) {
        throw new IllegalArgumentException("url == null");
    }
    if (handler == null) {
        throw new IllegalArgumentException("handler == null");
    }
    url = url.addParameterIfAbsent(Constants.CODEC_KEY, "exchange");
    return getExchanger(url).bind(url, handler);
}

// 获取Exchanger，这里有SPI（基本使用）但是只有HeaderExchanger一个实现。
public static Exchanger getExchanger(URL url) {
    String type = url.getParameter(Constants.EXCHANGER_KEY, Constants.DEFAULT_EXCHANGER);
    return getExchanger(type);
}

public static Exchanger getExchanger(String type) {
    return ExtensionLoader.getExtensionLoader(Exchanger.class).getExtension(type);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
@SPI(HeaderExchanger.NAME)
public interface Exchanger {

    /**
     * bind.
     *
     * @param url
     * @param handler
     * @return message server
     */
    @Adaptive({Constants.EXCHANGER_KEY})
    ExchangeServer bind(URL url, ExchangeHandler handler) throws RemotingException;

    /**
     * connect.
     *
     * @param url
     * @param handler
     * @return message channel
     */
    @Adaptive({Constants.EXCHANGER_KEY})
    ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException;

}

  Exchanger只有HeaderExchanger一个实现类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class HeaderExchanger implements Exchanger {

    public static final String NAME = "header";

    @Override
    public ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException {
        return new HeaderExchangeClient(Transporters.connect(url, new DecodeHandler(new HeaderExchangeHandler(handler))), true);
    }

    @Override
    public ExchangeServer bind(URL url, ExchangeHandler handler) throws RemotingException {
        return new HeaderExchangeServer(Transporters.bind(url, new DecodeHandler(new HeaderExchangeHandler(handler))));
    }

}

  HeaderExchanger中调用了Transporters的bind方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// Transporters
public static Server bind(URL url, ChannelHandler... handlers) throws RemotingException {
    if (url == null) {
        throw new IllegalArgumentException("url == null");
    }
    if (handlers == null || handlers.length == 0) {
        throw new IllegalArgumentException("handlers == null");
    }
    ChannelHandler handler;
    if (handlers.length == 1) {
        handler = handlers[0];
    } else {
        handler = new ChannelHandlerDispatcher(handlers);
    }
    return getTransporter().bind(url, handler);
}

public static Transporter getTransporter() {
    return ExtensionLoader.getExtensionLoader(Transporter.class).getAdaptiveExtension();
}

  这里也采用SPI机制（扩展点自适应）选择使用的底层框架。默认是netty创建服务。

1
2
3
4
5
netty3=org.apache.dubbo.remoting.transport.netty.NettyTransporter
netty4=org.apache.dubbo.remoting.transport.netty4.NettyTransporter
netty=org.apache.dubbo.remoting.transport.netty4.NettyTransporter
mina=org.apache.dubbo.remoting.transport.mina.MinaTransporter
grizzly=org.apache.dubbo.remoting.transport.grizzly.GrizzlyTransporter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
@SPI("netty")
public interface Transporter {

    /**
     * Bind a server.
     *
     * @param url     server url
     * @param handler
     * @return server
     * @throws RemotingException
     * @see org.apache.dubbo.remoting.Transporters#bind(URL, ChannelHandler...)
     */
    @Adaptive({Constants.SERVER_KEY, Constants.TRANSPORTER_KEY})
    Server bind(URL url, ChannelHandler handler) throws RemotingException;

    /**
     * Connect to a server.
     *
     * @param url     server url
     * @param handler
     * @return client
     * @throws RemotingException
     * @see org.apache.dubbo.remoting.Transporters#connect(URL, ChannelHandler...)
     */
    @Adaptive({Constants.CLIENT_KEY, Constants.TRANSPORTER_KEY})
    Client connect(URL url, ChannelHandler handler) throws RemotingException;

}

public class NettyTransporter implements Transporter {

    public static final String NAME = "netty3";

    @Override
    public Server bind(URL url, ChannelHandler listener) throws RemotingException {
        return new NettyServer(url, listener);
    }

    @Override
    public Client connect(URL url, ChannelHandler listener) throws RemotingException {
        return new NettyClient(url, listener);
    }

}

远程暴露

向注册中心暴露服务

  这里有了在本地暴露的流程，远程暴露的流程呢？
  在上面根据扩展点自动选择协议时，有扩展点自动包装的扩展类，ProtocolFilterWrapper，ProtocolListenerWrapper，QosProtocolWrapper。
  在ProtocolFilterWrapper和ProtocolListenerWrapper中：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
// ProtocolFilterWrapper
@Override
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
    if (Constants.REGISTRY_PROTOCOL.equals(invoker.getUrl().getProtocol())) {
        return protocol.export(invoker);
    }
    return protocol.export(buildInvokerChain(invoker, Constants.SERVICE_FILTER_KEY, Constants.PROVIDER));
}

// ProtocolListenerWrapper
@Override
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
    if (Constants.REGISTRY_PROTOCOL.equals(invoker.getUrl().getProtocol())) {
        return protocol.export(invoker);
    }
    return new ListenerExporterWrapper<T>(protocol.export(invoker),
            Collections.unmodifiableList(ExtensionLoader.getExtensionLoader(ExporterListener.class)
                    .getActivateExtension(invoker.getUrl(), Constants.EXPORTER_LISTENER_KEY)));
}

  这里如果是远程暴露是时，将会直接进入REGISTRY_PROTOCOL中，进行远程注册。在RegistryProtocol中：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
@Override
public <T> Exporter<T> export(final Invoker<T> originInvoker) throws RpcException {
    URL registryUrl = getRegistryUrl(originInvoker);
    // url to export locally
    URL providerUrl = getProviderUrl(originInvoker);

    // Subscribe the override data
    // FIXME When the provider subscribes, it will affect the scene : a certain JVM exposes the service and call
    //  the same service. Because the subscribed is cached key with the name of the service, it causes the
    //  subscription information to cover.
    // 订阅override数据
    // FIXME 提供者订阅时，会影响同一JVM即暴露服务，又引用同一服务的的场景，
    // 因为subscribed以服务名为缓存的key，导致订阅信息覆盖。
    final URL overrideSubscribeUrl = getSubscribedOverrideUrl(providerUrl);
    final OverrideListener overrideSubscribeListener = new OverrideListener(overrideSubscribeUrl, originInvoker);
    overrideListeners.put(overrideSubscribeUrl, overrideSubscribeListener);

    providerUrl = overrideUrlWithConfig(providerUrl, overrideSubscribeListener);


    //export invoker
    // 在本地暴露服务
    final ExporterChangeableWrapper<T> exporter = doLocalExport(originInvoker, providerUrl);

    // url to registry
    // 拿到zookeeper的注册信息
    final Registry registry = getRegistry(originInvoker);

    // 获取需要暴露provider的url对象，dubbo的注册订阅通信都是以url作为参数传递的
    final URL registeredProviderUrl = getRegisteredProviderUrl(providerUrl, registryUrl);
    ProviderInvokerWrapper<T> providerInvokerWrapper = ProviderConsumerRegTable.registerProvider(originInvoker,
            registryUrl, registeredProviderUrl);
    //to judge if we need to delay publish
    boolean register = registeredProviderUrl.getParameter("register", true);
    if (register) {
        // 注册服务
        register(registryUrl, registeredProviderUrl);
        providerInvokerWrapper.setReg(true);
    }

    // Deprecated! Subscribe to override rules in 2.6.x or before.
    // 暴露的同时订阅服务，另外会在zk上创建configurators节点信息
    registry.subscribe(overrideSubscribeUrl, overrideSubscribeListener);

    exporter.setRegisterUrl(registeredProviderUrl);
    exporter.setSubscribeUrl(overrideSubscribeUrl);
    //Ensure that a new exporter instance is returned every time export
    // 保证每次export都返回一个新的exporter实例
    return new DestroyableExporter<>(exporter);
}

// 注册服务
public void register(URL registryUrl, URL registeredProviderUrl) {
    Registry registry = registryFactory.getRegistry(registryUrl);
    registry.register(registeredProviderUrl);
}

  这里经过AbstractRegistry，FailbackRegistry，到了ZookeeperRegistry，调用了doRegister方法，在zk上注册节点，注册完成。这里也可以不选择zk，也可以有其他的注册位置。

1
2
3
4
5
6
7
8
@Override
public void doRegister(URL url) {
    try {
        zkClient.create(toUrlPath(url), url.getParameter(Constants.DYNAMIC_KEY, true));
    } catch (Throwable e) {
        throw new RpcException("Failed to register " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
    }
}
相关文章
